How do satellites “take pictures” of the Earth?

When it comes to taking pictures, we naturally think of cameras and shutters. It is common to think about pointing the camera at what needs to be captured, and as soon as the shutter is pressed, you can get an image. This image will contain data with the three primary colours on 2D pixels. However, the case is quite different when it comes to the observation of the earth (surface / atmosphere). The specific imaging principle via satellites is slightly more complex.

Scanning method

Satellites can be divided into geostationary and polar-orbiting. This division is according to their orbits. We know that the angular velocity of the earth’s rotation is fixed. If a satellite is used to monitor the earth constantly, then the height of the satellite’s orbit is fixed. This is a fixed satellite. The height of the fixed satellite is 36,000 km, and the radius of the earth is about 6,371km. It is conceivable that the angle of view of the earth from the satellite is only 18°. How can the effect of direct imaging be good? We want to have very high-resolution images and need to use the “scan” method.

Specifically, “scanning” is to obtain data by adjusting the angle of the observation instrument. Then, there will be a need to aim it at different positions on the earth. For example, in the Fengyun 2 meteorological satellite, it rotates around its main axis. Thus, the sensor can scan the belt-shaped observation data on the earth. Then adjust the attitude of the satellite and tilt it up and down to scan the “parallel” data on the earth.

Of course, different satellites can use different attitude adjustment methods to improve the observation utilization rate. In Fengyun 2, there is a 360° rotation of the satellite itself. However, only a few tens of degrees are facing the earth. Also, its use rate is obviously not high. Nevertheless, for the Fengyun 4, a three-axis stabilization method is adopted. It actively controls the orientation of the satellite, so that the detector always faces the earth during the rotation process. With this design, the observation efficiency is obviously much better.

Why not the three-axis stabilization method?

So some people can’t help but ask, why didn’t the three-axis stabilization method control the satellite orientation earlier? Because the three-axis stabilization method is not so simple. The spin stabilization method can easily stabilize its own attitude when the satellite is moving around the earth. The key point is that the satellite itself is axisymmetric to its main axis. In contrast, the three-axis stabilization method wants to keep the probe always facing the earth. The attitude of the satellite and how to stabilize is a big problem.

Secondly, the solar radiation of the spin-stabilized satellite is uniform. However, the three-axis stable option has one side always facing the earth. The difference in the amount of solar radiation on the two sides of the satellite will cause it to deform. The development and use of materials and the arrangement of instruments all require careful consideration. Getting images of the earth from such distances is not in any way simple.

Polar-orbiting

Because the geostationary option is far away from the earth, the observation accuracy will sure be limited. If we want to obtain higher-precision observation data, we need polar-orbiting satellites. Polar-orbiting satellites (also called sun-synchronous satellites) have a lower orbit than geostationary satellites. They are about 840km and orbit the earth’s north and south poles. Its observation method can be imagined as scanning during CT. Wherever the instrument / satellite sweeps, it captures of the place it sweeps through. Therefore, the orbit of the satellite and the longitude and latitude of the observation data can be directly matched. Planetary scientists often call this “a track data”. As an example, the CloudSat satellite swept out of Earth in one day at a station shown below

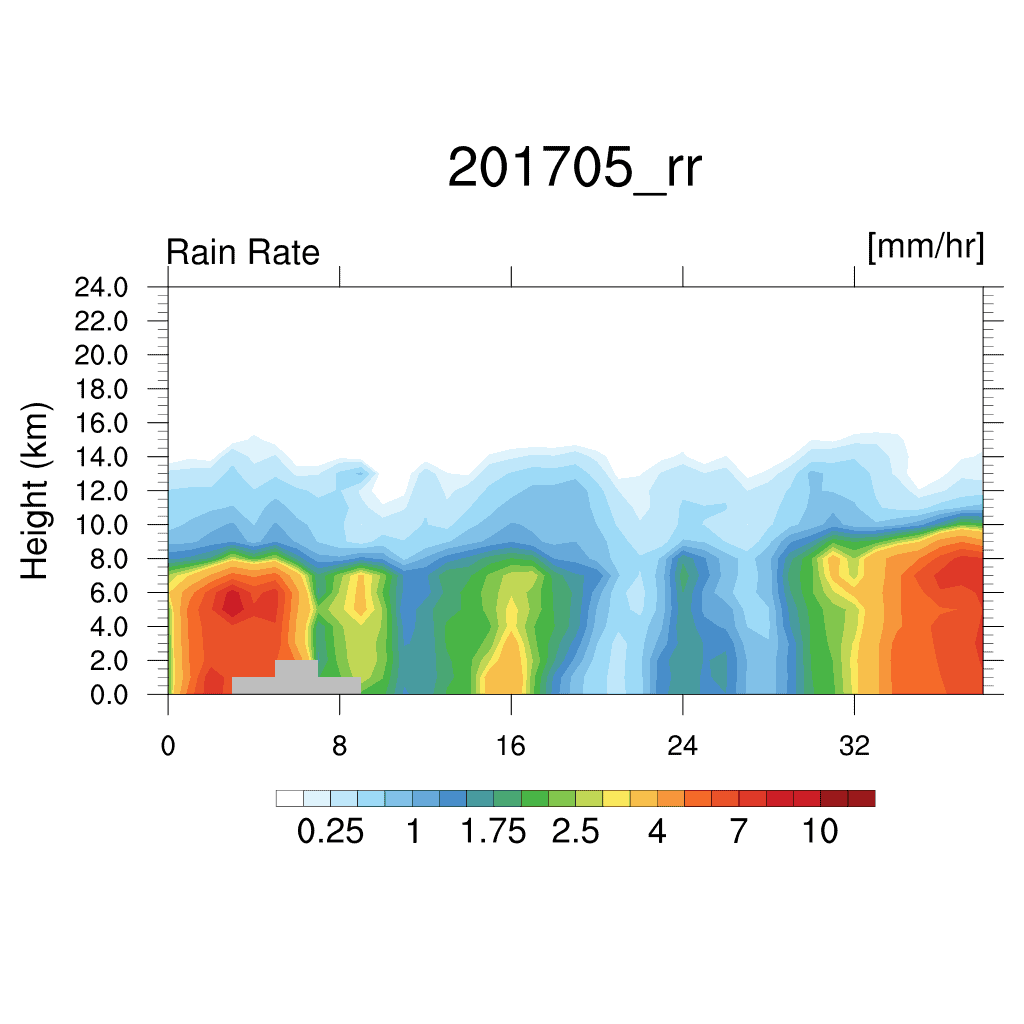

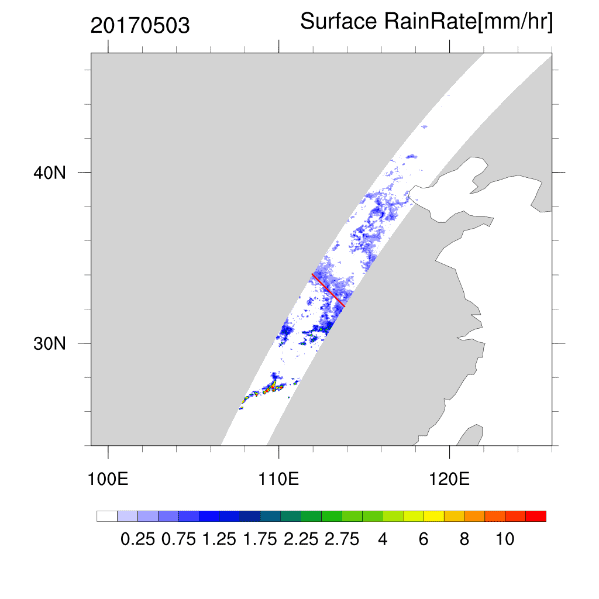

We can see that the coverage is relatively small. Of course, there are also satellites in the process of travelling. This will add the detection instrument to the swing perpendicular to the orbital direction. This will help the equipment detect the data of one surface. For example, the picture on the left is the surface precipitation measured by the GPM satellite. If you draw a profile at the red line, you can get the precipitation rate profile at the red line (right picture).

Time-lapse issue

As simple as it sounds, the process is quite complex. Obviously, there is a time difference in the observed data of each orbit. The period of the satellite orbiting the earth is about 84 minutes. When we select one track for data analysis, it is actually difficult to say that these 84 minutes of data are at the same time. The time difference should also be taken into account when selecting a certain period of data analysis.

A global or regional data analysis will consider many days of data sets. These data will plot on a graph and this could represent the long-term average state. The “average state” data is not the average of long period of continuous observation. It is actually the point observed again after a long time interval. This is because the observation gets less than “simultaneous data”. The average of different points on the map is actually the average of different times. It’s a bit confusing. Anyway, In addition to spatial resolution, the improvement of time accuracy is also a very important thing.
